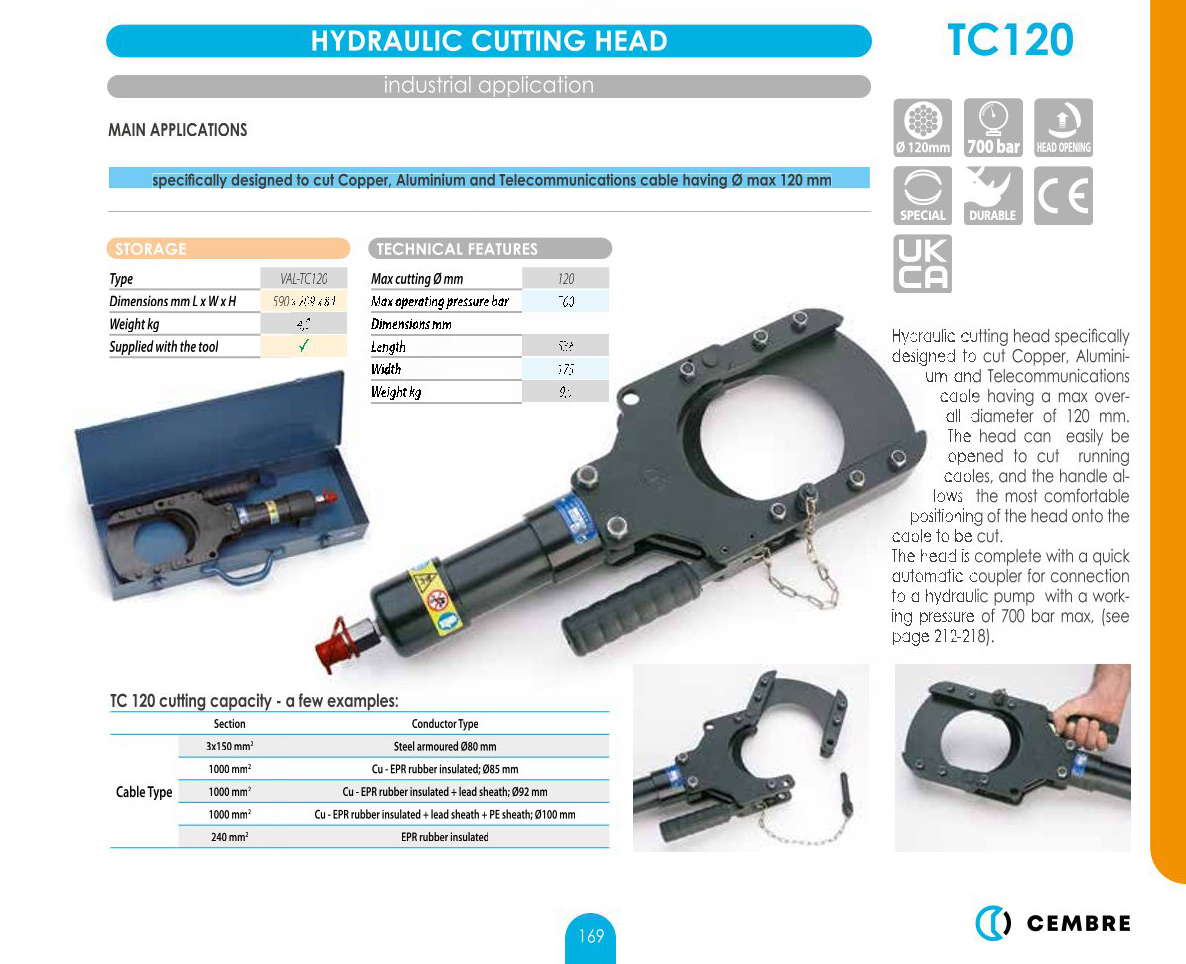

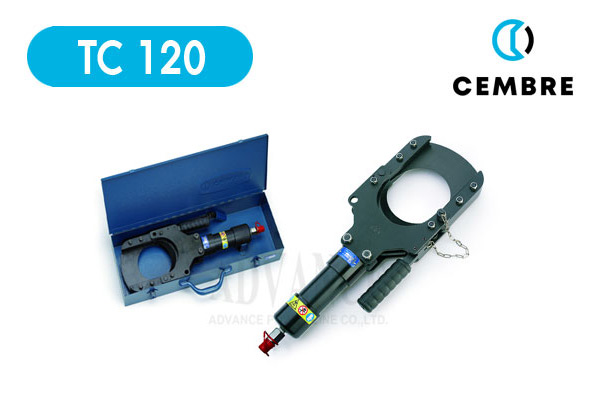

| TC 120 : HYDRAULIC CUTTING HEAD |
MAIN APPLICATIONS |
PRICE |
|---|---|
Specifically designed to cut Copper, Aluminium and Telecommunications cable having Ø max 120 mm |
147,500.- |
TECHNICAL FEATURES |
STORAGE
|
||
|---|---|---|---|
Max cutting Ø mm |
120 | Type |
VAL-TC120 |
Max operating pressure bar |
700 | Dimensions mm L x W x H |
590 x 209 x 84 |
Dimensions mm |
Weight kg |
4.9 | |
- Length |
536 | Supplied with the tool |
* |
- Width |
175 | *Suitable for storage of the tool and 20 sets of dies
|
|
- Weight kg |
9.5 | ||
CODE : TC 120 Hydraulic cutting head specifi cally designed to cut Copper, Aluminium and Telecommunications cable having a max overall diameter of 120 mm. Datasheet : Cembre TC 120
|
