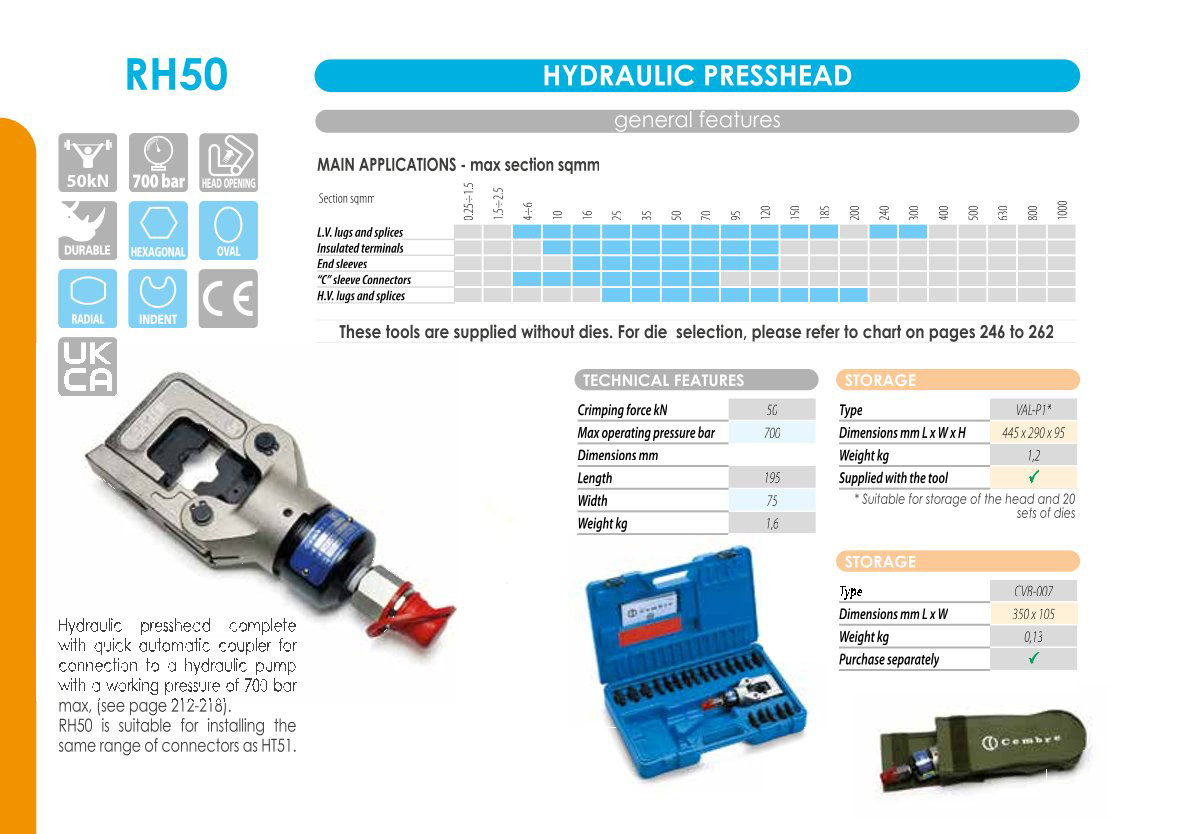

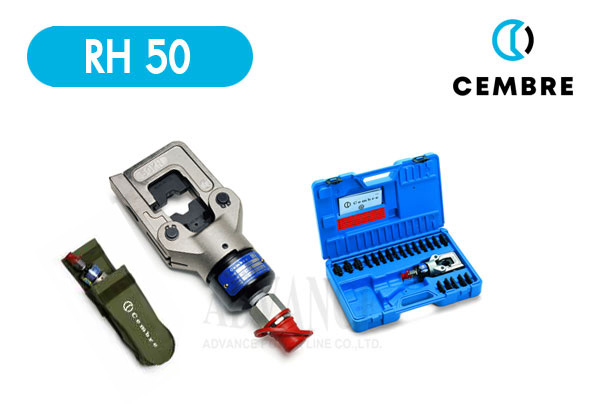

RH 50 : HYDRAULIC PRESSHEAD
MAIN APPLICATIONS - max sections mm2
PRICE
L.V. lugs and splices
300
Insulated terminals
120
End sleeves
120
“C” sleeve connectors
70
TECHNICAL FEATURES
STORAGE
STORAGE
Crimping force kN
50
Type
VAL-P1*
Type
CVB-007
Max operating pressure bar
700
Dimensions mm L x W x H
445 x 290 x 95
Dimensions mm L x W x H
350 x 105
Dimensions mm

Weight kg
1.2
Weight kg
0.13
- Length
196
Supplied with the tool
*
Purchase separatelyl

*

- Width
75
*Suitable for storage of the tool and 20 sets of dies
- Weight kg
1.6

CODE : RH 50
Technical Features :
   Hydraulic presshead complete with quick automatic coupler for connection to a hydraulic pump with a working pressure of 700 bar max, (see page 212-218).
   RH50 is suitable for installing the same range of connectors as HT51.
  Datasheet : Cembre RH 50
